简体中文Micro switch
Nice appearance,tight configuration.Characteristic:small contact clearance, quick action,high sensitivity and small operating travel.
Long life,high reliability.
A variety of contact terminals.
Wide range of operating force.
A variety of temperature degree.
A variety of levers.
Adopt thermosetting plastic or thermoplastic.
Widely used in home appliance,electronic equipment,automatic machine,communication equipment,car electron,apparatus and instrument, electric motion tool etc.
| Model | Photo | Size | Operating Force (gf) | Rating | Test Voltage | Electrical Life (cycles) | |
|---|---|---|---|---|---|---|---|

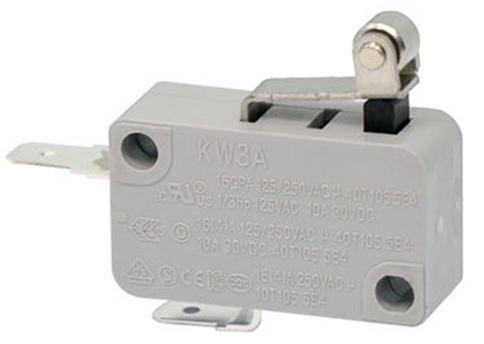

| KW3A |  | 27.8*15.9*10.3 | ≤0.5N | AC250V | AC1000V | 50,000 | - |
| KW4A |  | 19.8*10.8*6.4 | ≤0.5N | AC250V | AC1000V | 10,000 | - |
| KW4B |  | 19.8*10.8*6.4 | ≤0.5N | AC250V | AC1000V | 10,000 | - |
| KW10 |  | 12.8*6.5*5.8 | ≤0.75N | AC250V | AC600V | 10,000 | - |
| MS1 |  | 27.8*15.9*10.3 | ≤0.5N | AC250V | AC1000V | 50,000 | - |
| MS2 |  | 19.8*10.5*6.4 | ≤1N | AC250V | AC1000V | 50,000 | - |
| MS3 |  | 21.2*10*6.7 | ≤0.5N | AC250V | AC1000V | 50,000 | - |
| MS5 |  | 20.2*9.6*8 | ≤4.5N | DC12V | AC1000V | 30,000 | - |
| MS6 |  | 19.2*15.5*7.9 | ≤2N | DC24V | AC660V | 250,000 | - |
| MS7 |  | 8*6.5*3.5 | 0.39±0.25N | DC6V | AC250V | 30,000 | - |
| MS9 |  | 19.9*9.65*6.45 | ≤0.7N | AC250V | AC1000V | 10,000 | - |
| MS10 |  | 27.8*15.9*10.3 | ≤0.5N | AC250V | AC1000V | 50,000 | - |
| MS12 |  | 8.2*7.6*2.7 | ≤0.5N | AC250V | AC500V | 30,000 | - |
| MS13 |  | 29.2*10.4*7 | ≤1.3N | AC125/250V | AC1000V | 50,000 | - |
| WS1 |  | 19.8*9.6*6.4 | ≤0.5N | AC250V | AC1000V | 50,000 | - |
| WS1L |  | 20*10.4*6.4 | ≤0.5N | AC250V | AC1000V | 50,000 | - |
| WS2 |  | 33*15.9*10 | ≤0.5N | AC250V | AC1000V | 50,000 | - |
| WS3 |  | 12.8*6*6.5 | ≤1.5N | AC250V | AC600V | 10,000 | - |
| WS4 |  | 19.8*10.1*6.4 | ≤1N | AC250V | AC1000V | 50,000 | - |
| WS5 |  | 14.7*6.8*5.4 | ≤1N | DC12V | AC600V | 100,000 | - |
| WS6 |  | 13.3*5.4*9.6 | ≤1.5N | DC30V | AC600V | 200,000 | - |
| WS7 |  | 33*23.2*9.8 | ≤2N | AC250V | AC1000V | 10,000 | - |
| WS8 |  | 8.3*5.3*5 | ≤1.5N | DC12V | AC500V | 300,000 | - |
| RS1 |  | 32*12*14 | 5.5～8.5N | AC250V | AC1500V | 50,000 | - |
| RS2 |  | 32.8*20.6*16.5 | 5.5～8.5N | AC250V | AC1500V | 50,000 | - |
| RS3 |  | 32*31*25 | 5.5～8.5N | AC250V | AC1500V | 50,000 | - |
| RS4 |  | 19.8*10.8*6.4 | 0-1:5.5±1.5N;1-2:7.5±1.5N | AC250V | AC1500V | 10,000 | - |
| KDC-A04 |  | 49.5*18.5*24.5 | 2～8N | AC250V | AC2000V | 10,000 | - |
| KDC-A11 |  | 53.2*20*13.3 | 3.5～7.5N | AC250V | AC2000V | 10,000 | - |
Please call us or contact us for more information
